Features:
· Keypad control panel with bright LED
· High precision spindle for quick and easy wheel balancing
· Precise wheel clamping system flange,easy and fast to fix the wheel on the measuring.
· Balancer axle.Safety set with microswich the wheel cover is on position then the wheel begins to rotate.

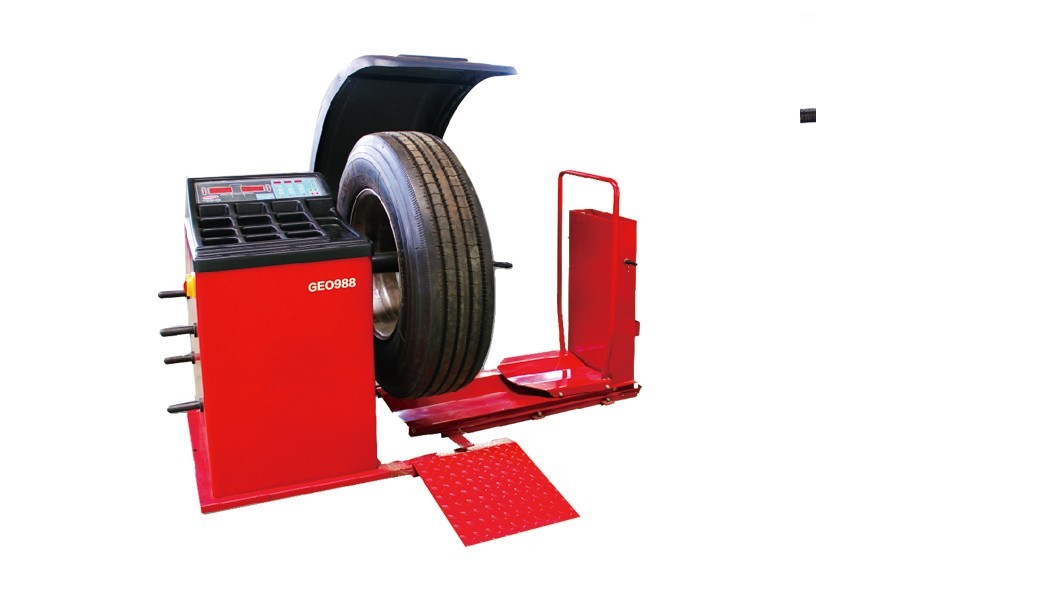

GEO988 Heavy duty large truck tire wheel balancer bus tyre wheel balancer 16” -24"
TECHNICAL DATA
| Rim Diamter | 16"- 24" |
| Rim Width | 5.7"-20" |
| Max.wheel weight | 200kg |
| Max Wheel diameter | 1250mm |
| Air pressure | 8-10bar |
| Testing Time | 12-20s |
| Protection Cover | supplied |
| Pneumatic Built-In Lift | supplied |
| Power Supply | 220V 50HZ 1PH |

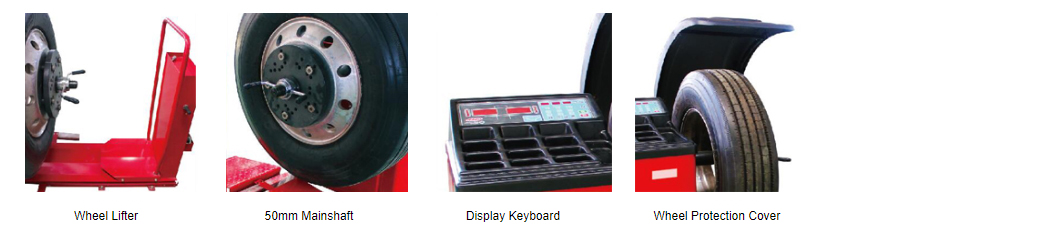

PRODUCTION DETAILS

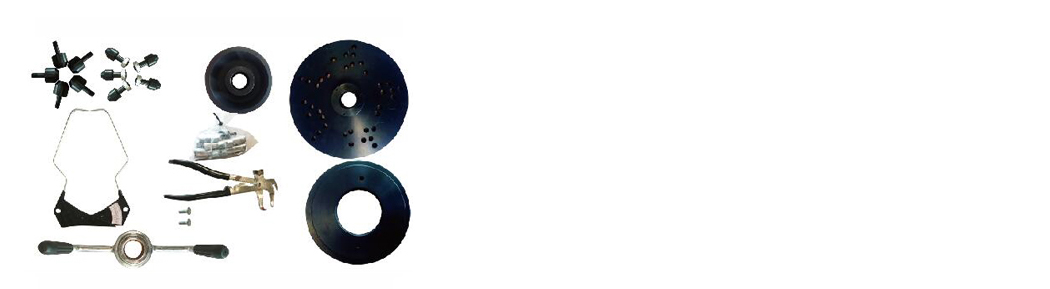

STANDARD ACCESSORIES

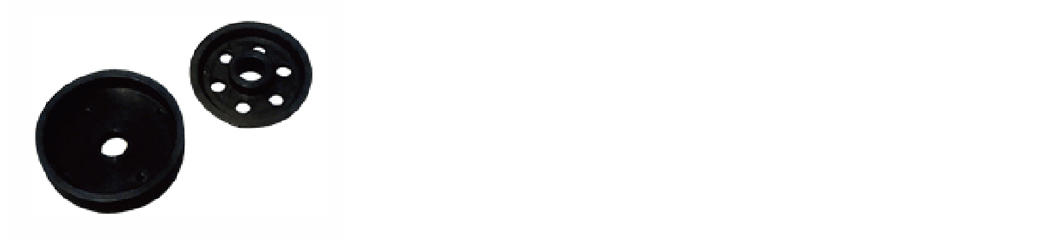

OPTIONAL ACCESSORIES
WEIGHT&DIMENSIONS
Model：GEO988
Gross Weight（kg）：320
Outside Dimension L×W×H（mm）：1340×940×1180
