Features:
· Double speed for rotation motor

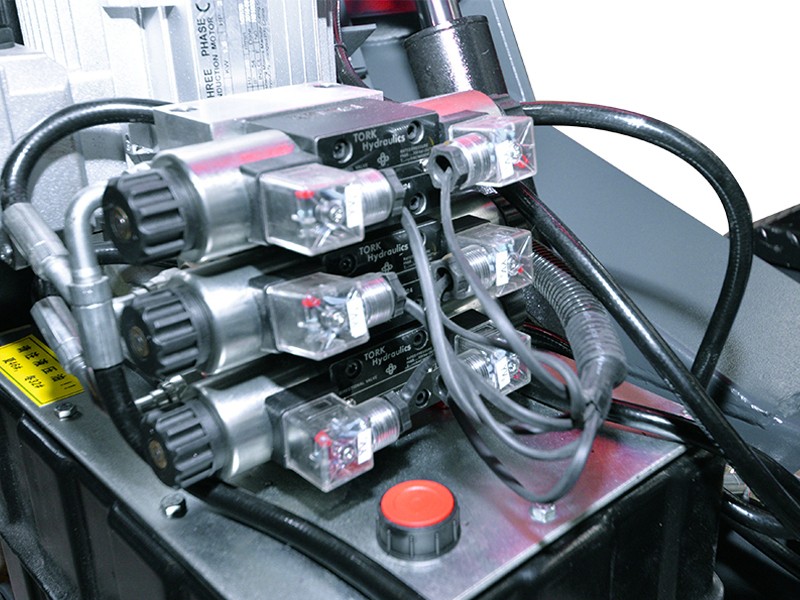

· Import hydraulic pump
· Alu protection kit as standard accessory
· Small floor area

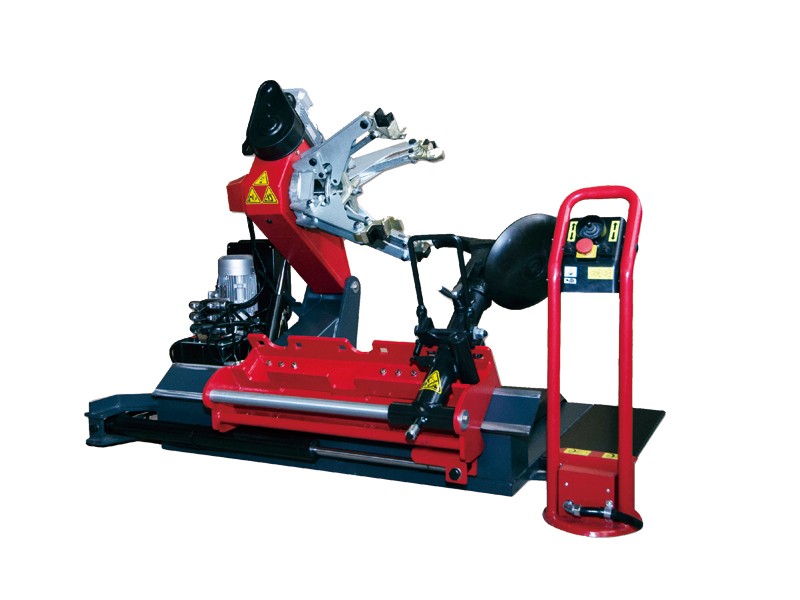

Heavy duty large truck tire changer T568-2
TECHNICAL DATA
| Rim Diamter | 14"- 26" |
| Max.wheel weight | 500kg |
| Max Wheel Width | 780mm |
| Max Tyre Diameter | 1600mm |
| Hydraulic Pump Motor | 1.5KW 380V - 3PH（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH（220V Optional） |
| Bead Breaker Force | 2500kg |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 588kg |
| Overall Dimensions Approx | 2500×2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |

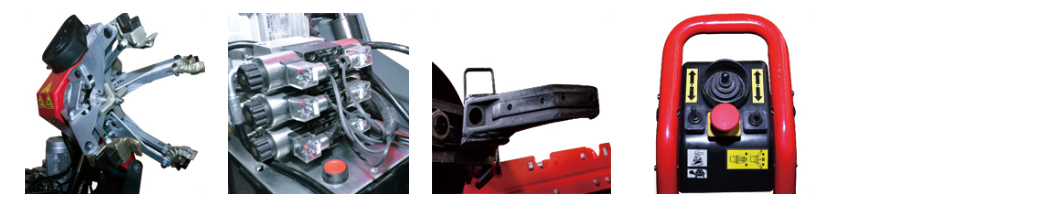

PRODUCTION DETAILS
STANDARD ACCESSORIES
WEIGHT&DIMENSIONS
Model：T568-2
Gross Weight（kg）：650
Outside Dimension L×W×H（mm）：1830×1480×1080
