Features:

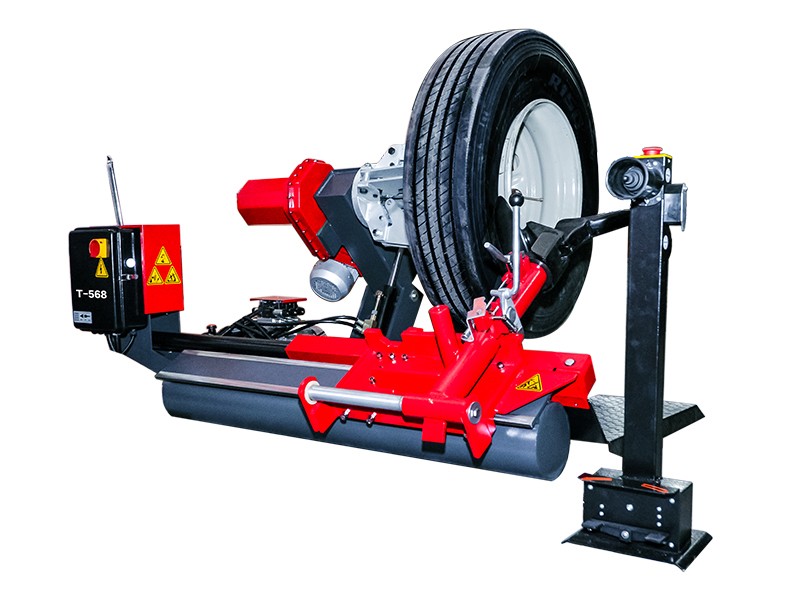

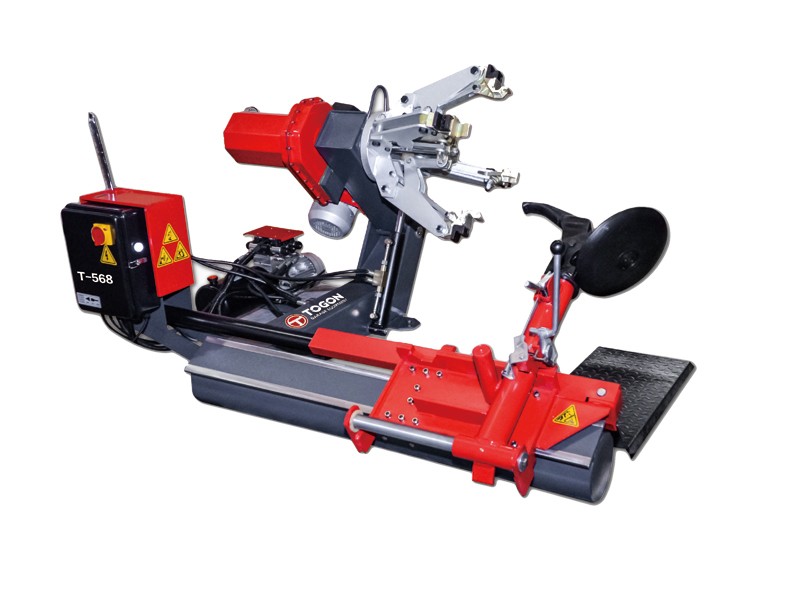

· Semi-Auyomatic truck tyre changer t568 universal

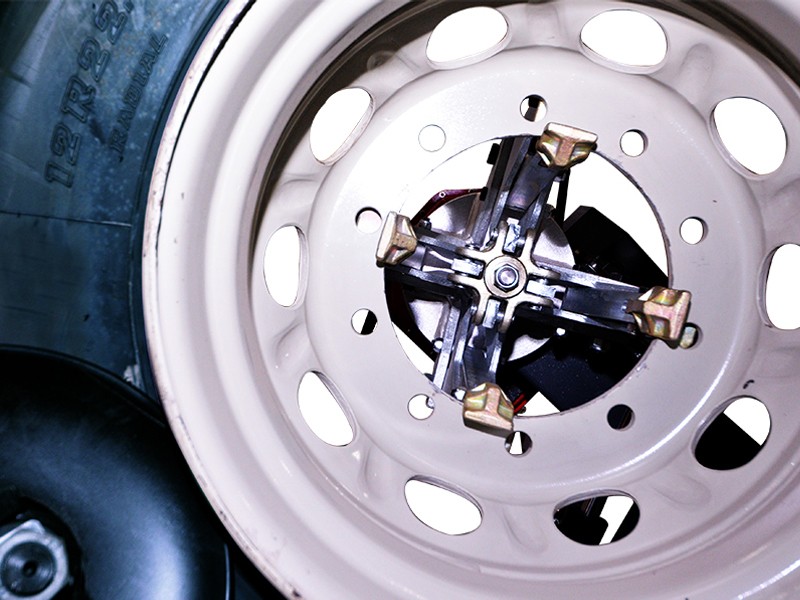

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional
truck tire changer 14"- 26"
TECHNICAL DATA
| Rim Diamter | 14"- 26" |
| Max.wheel weight | 500kg |
| Max Wheel Width | 780mm |
| Max Tyre Diameter | 1600mm |
| Hydraulic Pump Motor | 1.5KW 380V - 3PH（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH（220V Optional） |
| Bead Breaker Force | 2500kg |
| Max.Torque | 6457N.m |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 517kg |
| Overall Dimensions Approx | 2500×2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |

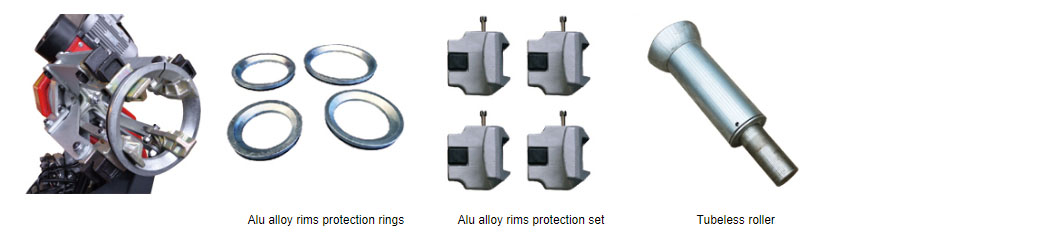

OPIONAL ACCESSORIES
STANDARD ACCESSORIES

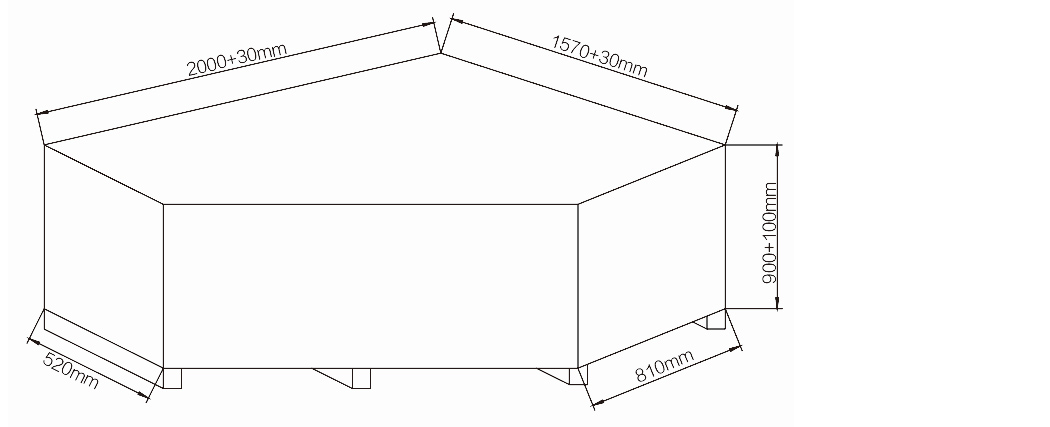

WEIGHT&DIMENSIONS
Model：T568
Gross Egight（kg）：633
Outside Dimension L×W×H（mm）：2030×1580×1000
