Features:

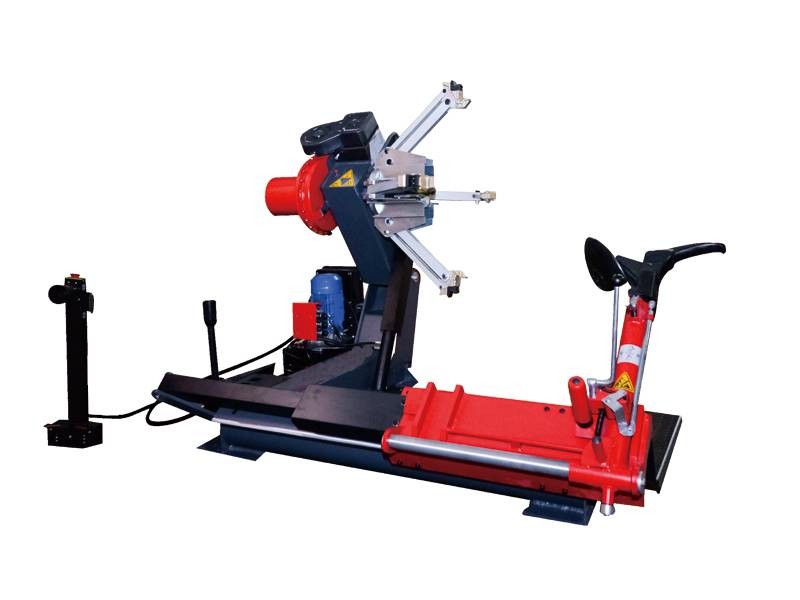

· Semi-Automatic universal truck tyre changer T598 for industrial,agricultural and earthmoving wheels
· Rim capacity 14”- 42”
· Italian pump
T598 heavy duty bus tyre changer truck tire changer 14"- 42"
TECHNICAL DATA
| Rim Diamter | 14"- 42" |
| Max.wheel weight | 1600kg |
| Max Wheel Width | 1050mm |
| Max Tyre Diameter | 2300mm |
| Hydraulic Pump Motor | 2.2KW 380V - 3PH - 50HZ（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH - 50HZ（220V Optional） |
| Bead Breaker Force | 3300kg |
| Max.Torque | 5265N.m |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 758kg |
| Overall Dimensions Approx | 2500×2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |
| Noise Level | ≤70db |
| Temperature | 0℃-40℃ |

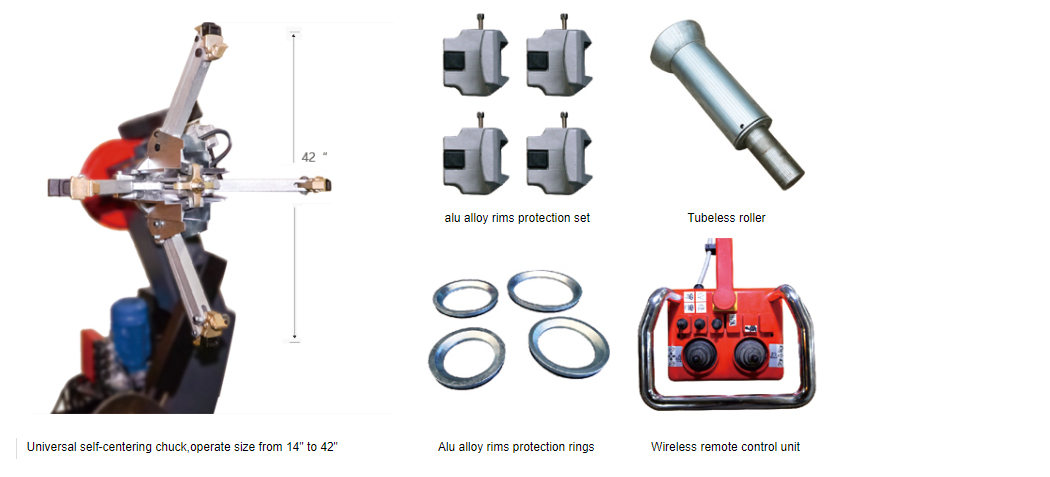

OPIONAL ACCESSORIES

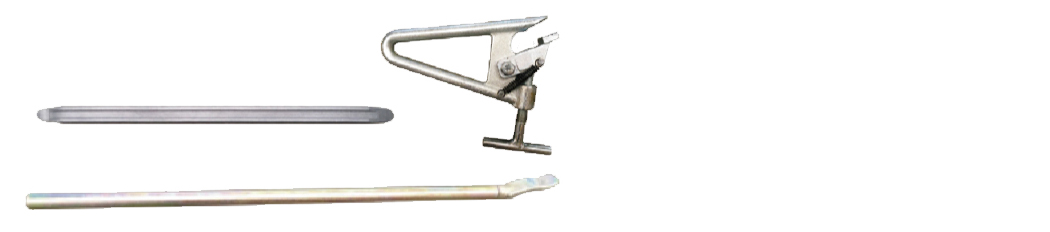

STANDARD ACCESSORIES
WEIGHT&DIMENSIONS
Model：T598
Gross Weight（kg）：850
Outside Dimension L×W×H（mm） 2130×1850×1050
