Features:
1.Carrying large capacity
2.adjustable runway，easy operation
3.Post orbital mechanical processing a forming, weight evenly, run more smoothly
4.Lifting bracket inside orientation, large loading
5.The planet cycloidal needle wheel deceleration, screw rotation, nut drive tray, Joe fork lift
6.personalized design,reasonable aesthetic
7.Double nuts,Supporting post available ,more safety
8.Four posts can lift together,or single
Model | Capacity
| Lifting height
| Motor power (KW) | Output rotation speed (r/min) | Ascending speed:
| External dimensions
| Weight
| Input voltage(V) |
QTJ20-4C | 20t/4410LB | 1500mm/5ft | 2.2 | 50 | 600mm/min 2ft/min | 1300X1160X2930mm 4.3x3.9x9.8ft
| 4t/8820bl | 380 |
QTJ30-4C | 30t/66150LB | 1500mm/5ft | 3 | 50 | 600mm/min 2ft/min | 1300X1160X3000mm 4.3x3.9x10ft
| 4.6t/10143lb | 380 |
QTJ30-6C | 30t/66150LB | 1500mm/5ft | 2.2 | 50 | 600mm/min 2ft/min | 1300X1160X2930mm 4.3x3.9x9.8ft
| 6t/13230lb | 380 |
QTJ45-6C | 45T/99225LB | 1500mm/5ft | 3 | 50 | 600mm/min 2ft/min | 1300X1160X3000mm 4.3x3.9x10ft
| 7.2t/15876lb | 380 |

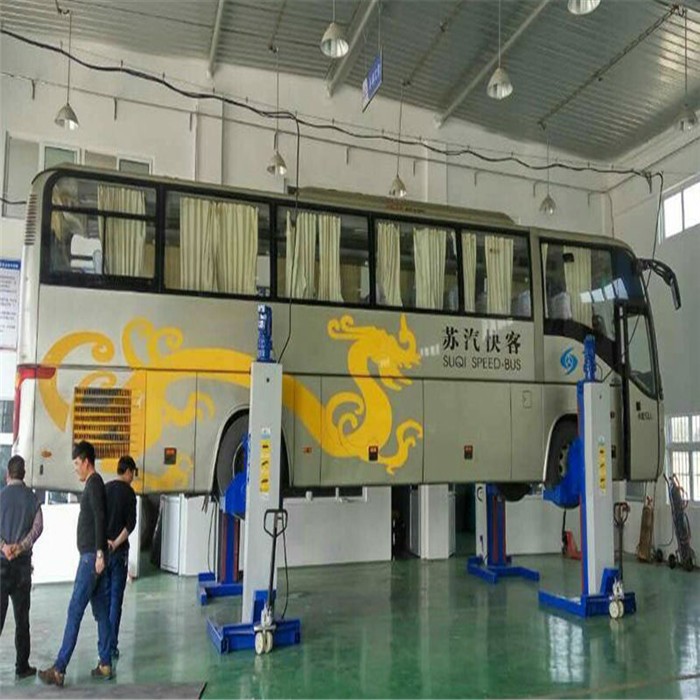

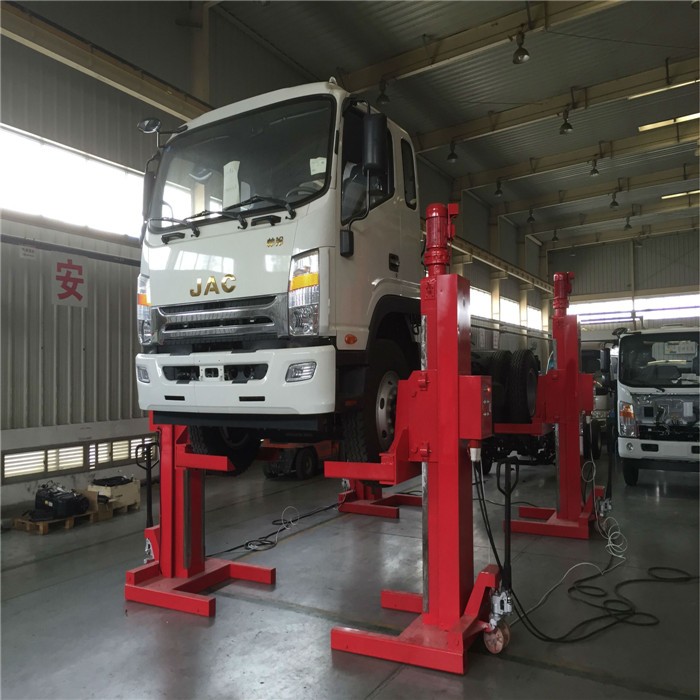

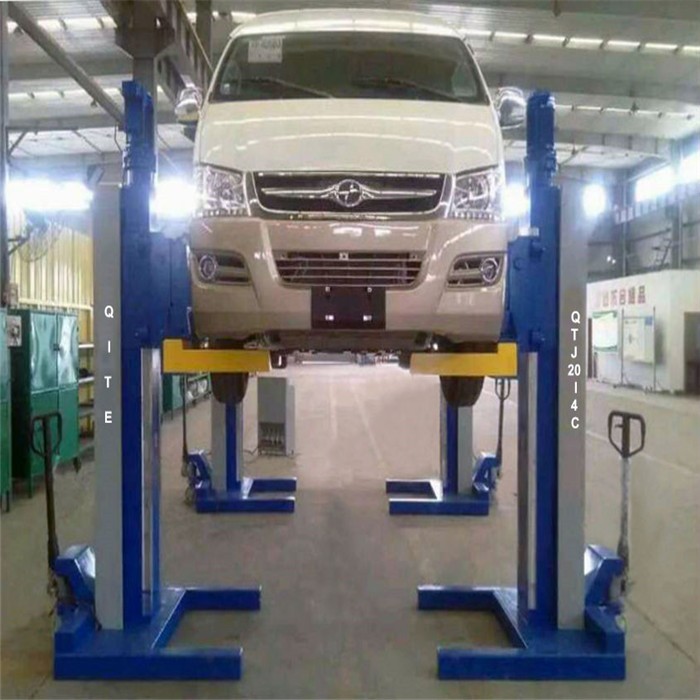

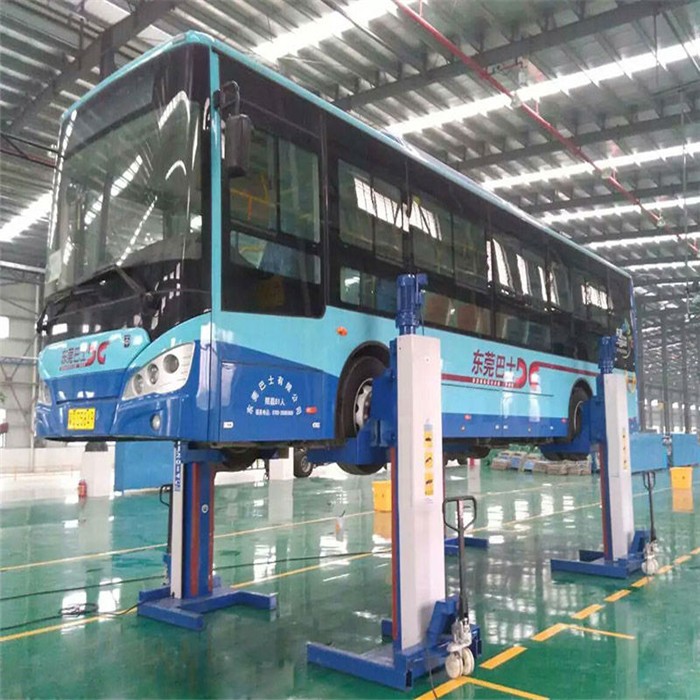

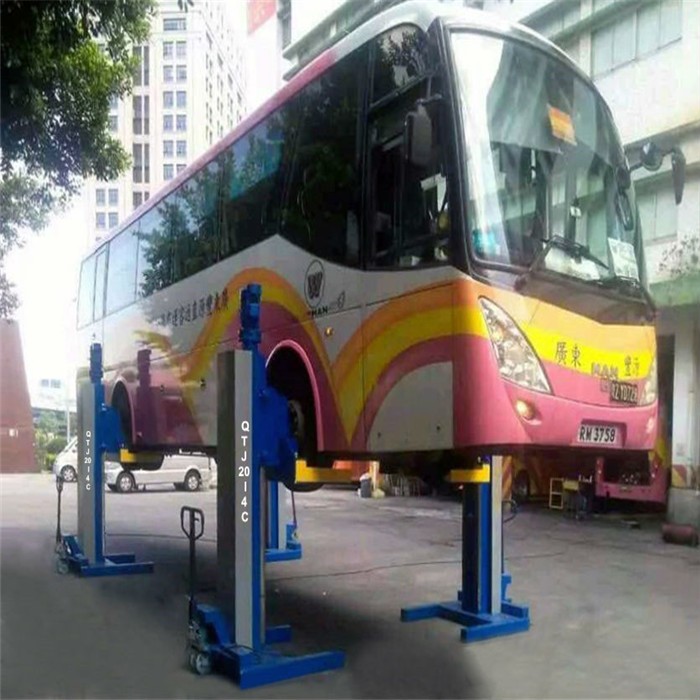

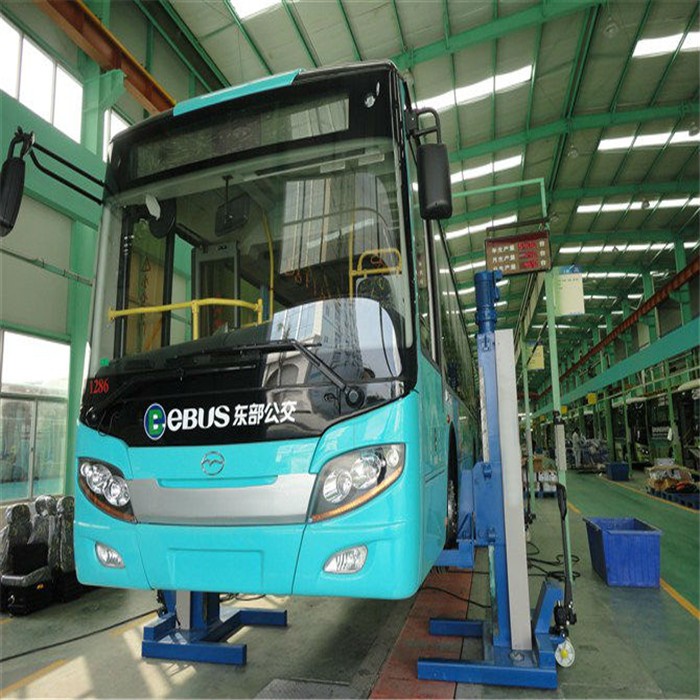

heavy duty electric mechanical 20t/30t/45t mobile column lift elevator for buses and trucks
