Product features:
Carrying large capacity, lead in domestic;
Adjustable runway, easy operation;
Mechanical process of post orbital at one time, loading evenly, run more smoothly;
Lifting bracket inside orientation;
cycloidal planetary gear speed reducer, chain drive the screw rotation, nut drive tray and fork lift;
Personalized design, reasonable and aesthetic.

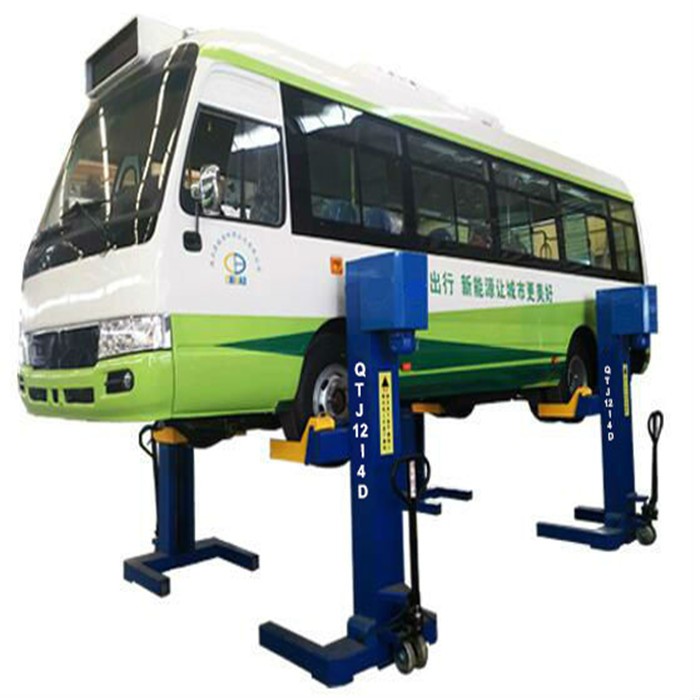

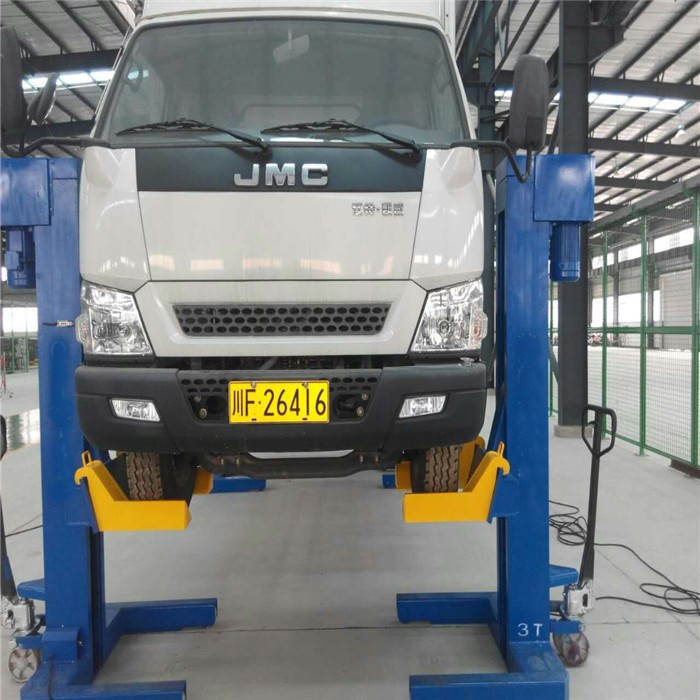

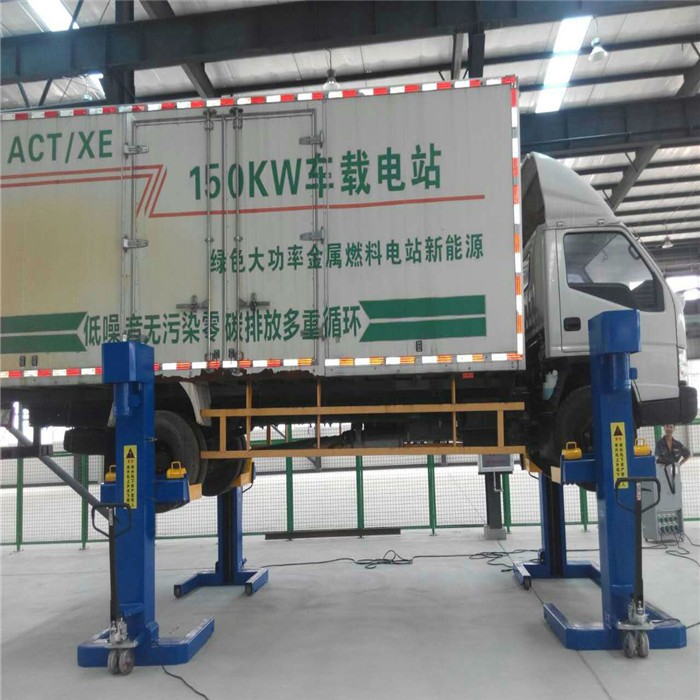

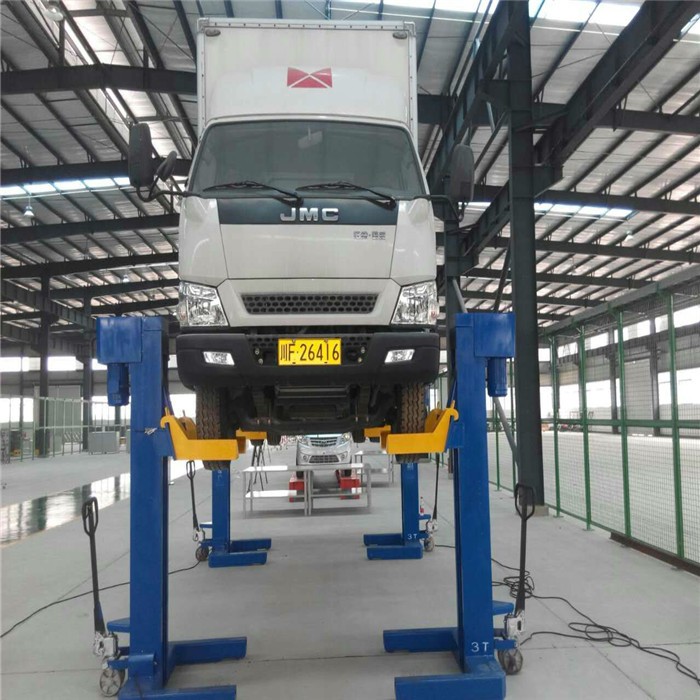

heavy duty electric mechanical 12t/20t mobile column lifter for small buses and trucks
Model | QTJ12-4D | QTJ20-4D |
Capacity | 12t | 20t |
Single lifting capacity | 3t | 5t |
Lifting Height | 1500mm | 1500mm |
Output Speed | 50r/min | 50r/min |
lifting Speed | 600mm/min | 600mm/min |
Motor Power | 2.2*4kw | 2.2*4kw |
Input Voltage | 380v | 380v |
Weight | 2.5t | 5t |
